Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
SKU:WIR-d2c19e
Chicago Drop Forged Ring Bolts & Screw Thread Eye Bolts - durable, precise hardware for wire rope assemblies.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
$189.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

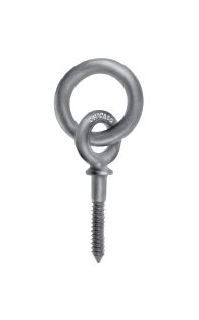

Enhance your wire rope assemblies with Chicago's Drop Forged Ring Bolts and Screw Thread Eye Bolts. These sturdy steel bolts, made in the USA, feature hot galvanized finish for durability. With precise dimensions and reliable construction, these bolts are suitable for various applications. Note: Ring bolts are not for lifting use.

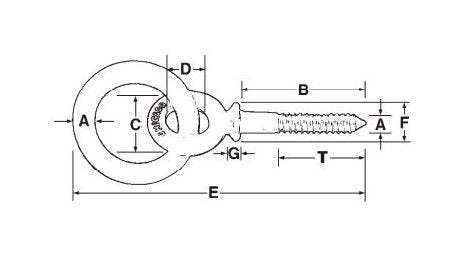

Product Specifications
Specifications Diameter A Shank Length B
1/2" x 3-1/4"
Specifications Id Eye Of Bolt D
1"
Specifications Id Eye Of Ring
3"
Specifications Od Eye Of Bolt C
2"
Specifications Outside Shoulder F
7/8"
Specifications Overall Length E
8-1/4"
Specifications Thickness At Shoulder G
5/32"
Specifications Thread Length T
2-1/8" "
Specifications Wt Per 100 Pcs Lbs
105.8
CAGE
0T9L4
NAICS
332722
PSC
5306
