Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
SKU:WIR-c0af2a
High-strength Drop Forged Ring Bolts for secure cable assembly attachment. Hot galvanized finish for corrosion resistance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
$299.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

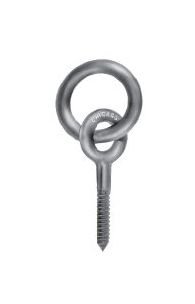

The Chicago Hardware & Fixture Drop Forged Ring Bolts are expertly crafted in the USA for exceptional strength and durability. Made from high-quality drop forged steel, these ring bolts feature precise dimensions for secure attachment to cable assemblies. The hot galvanized finish ensures corrosion resistance for long-lasting use. Please note that the welded design is not suitable for lifting applications.

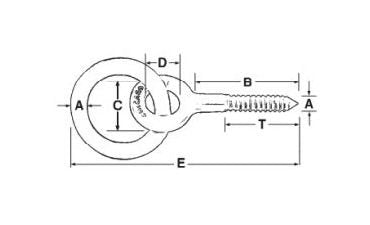

Product Specifications
Specifications Diameter A Shank Length B
7/8" x 5"
Specifications Id Eye Of Bolt D
1-3/4"
Specifications Id Eye Of Ring
3-1/4"
Specifications Od Eye Of Bolt C
3-1/4"
Specifications Overall Length E
11-1/2"
Specifications Thread Length T
3-1/4" "
Specifications Wt Per 100 Pcs Lbs
403
CAGE
0T9L4
NAICS
332722
PSC
5306
