Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
SKU:WIR-d6b0e9
Chicago Drop Forged Ring Bolts - High-quality hardware for secure cable assemblies. Made in USA, hot galvanized finish, drop forged steel construction.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
$189.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

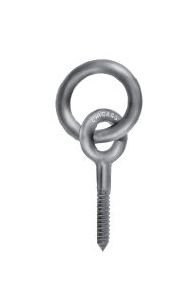

The Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts are essential hardware for secure cable assemblies. Made in the USA by Chicago Hardware & Fixture Company, these bolts feature a hot galvanized finish for durability. The drop forged steel construction ensures strength and reliability. With precise specifications and welded construction, these bolts are ideal for various applications, excluding lifting. Attach them easily via the ring or threaded end for secure connections.

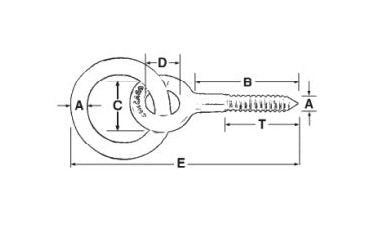

Product Specifications
Specifications Diameter A Shank Length B
1/2" x 3-1/4"
Specifications Id Eye Of Bolt D
1"
Specifications Id Eye Of Ring
3"
Specifications Od Eye Of Bolt C
2"
Specifications Overall Length E
8-1/4"
Specifications Thread Length T
2-1/8" "
Specifications Wt Per 100 Pcs Lbs
100.7
CAGE
0T9L4
NAICS
332722
PSC
5306
