Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
SKU:WIR-cb07ed
High-quality Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts, perfect for cable assembly attachment. Not for lifting applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
$199.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

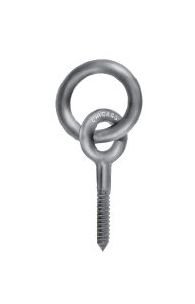

The Chicago Drop Forged Ring Bolts - Screw Thread Eye Bolts are crafted in the USA by Chicago Hardware & Fixture Company, ensuring superior quality and durability. Made from hot galvanized drop forged steel, these ring bolts feature precise dimensions for optimal performance. Please note these bolts are not intended for lifting applications. Ideal for fastening to cable assemblies, these bolts offer reliable attachment via the ring or threaded end.

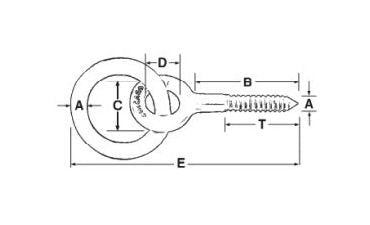

Product Specifications
Specifications Diameter A Shank Length B
5/8" x 4-1/2"
Specifications Id Eye Of Bolt D
1-1/4"
Specifications Id Eye Of Ring
2-3/4"
Specifications Od Eye Of Bolt C
2-5/16"
Specifications Overall Length E
9-9/16"
Specifications Thread Length T
2-1/2" "
Specifications Wt Per 100 Pcs Lbs
162
CAGE
0T9L4
NAICS
332722
PSC
5306
