Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
SKU:WIR-07bf83
Chicago Drop Forged Ring Bolts Shoulder - High-strength hardware with precise specifications for versatile applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
$249.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

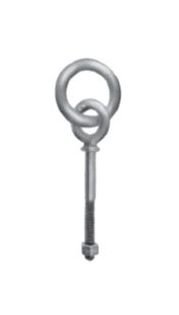

The Chicago Drop Forged Ring Bolts Shoulder - Machine Thread is a premium wire rope hardware accessory manufactured in the USA by Chicago Hardware & Fixture Company. These hot galvanized finish ring bolts are drop forged from high-quality steel, ensuring durability and strength. With a 1" diameter and 9" shank length, these bolts feature precise specifications ideal for various applications. Please note that these ring bolts are welded and not suitable for lifting purposes.

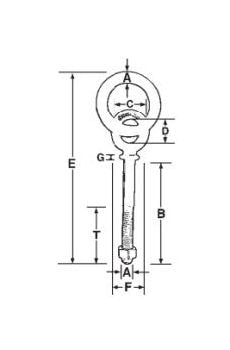

Product Specifications
Specifications Diameter A Shank Length B
1" x 9"
Specifications Id Eye Of Bolt D
2"
Specifications Id Eye Of Ring
3-3/4"
Specifications Od Eye Of Bolt C
3-3/4"
Specifications Outside Shoulder F
1-3/4"
Specifications Overall Length E
17"
Specifications Thickness At Shoulder G
5/16"
Specifications Thread Length T
4" "
Specifications Wll Lbs
4900
Specifications Wt Per 100 Pcs Lbs
750
CAGE
0T9L4
NAICS
332722
PSC
5306
