Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
SKU:WIR-38d2d7
Chicago Drop Forged Ring Bolts - Premium wire rope hardware for secure cable attachments, designed by Chicago Hardware & Fixture Company in the USA.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
$299.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

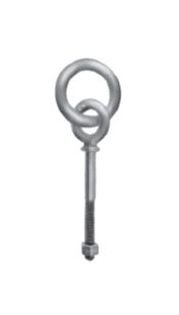

The Chicago Drop Forged Ring Bolts Shoulder - Machine Thread is a premium wire rope hardware designed for secure cable attachments. Made in the USA by Chicago Hardware & Fixture Company, these drop forged ring bolts feature a hot galvanized finish for durability. With a 7/8" x 5" diameter and shank length, and a Working Load Limit (WLL) of 3500 lbs per 100 pcs, these bolts are robust and reliable. While they are not recommended for lifting applications, they excel in other fastening needs both indoors and outdoors.

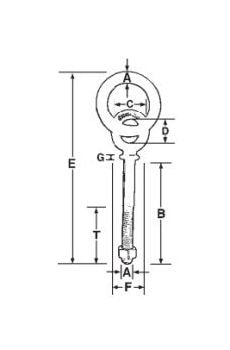

Product Specifications
Specifications Diameter A Shank Length B
7/8" x 5"
Specifications Id Eye Of Bolt D
1-3/4"
Specifications Id Eye Of Ring
3-1/4"
Specifications Od Eye Of Bolt C
3-1/2"
Specifications Outside Shoulder F
1-1/2"
Specifications Overall Length E
12"
Specifications Thickness At Shoulder G
9/32"
Specifications Thread Length T
2-1/2" "
Specifications Wll Lbs
3500
Specifications Wt Per 100 Pcs Lbs
445
CAGE
0T9L4
NAICS
332722
PSC
5306
