Chicago Drop Forged Ring Bolts Shoulder - Machine Thread

Name: Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
Brand: Lexco Cable Manufacturing
SKU: WIR-45d8e3
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-45d8e3

Chicago Drop Forged Ring Bolts - Essential wire rope hardware for secure cable attachments. Made in USA. Durable drop forged steel construction with hot galvanized finish.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

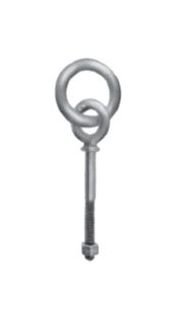

The Chicago Drop Forged Ring Bolts Shoulder - Machine Thread is a reliable wire rope hardware essential for both commercial and institutional use. Manufactured in the USA by Chicago Hardware & Fixture Company, these eye bolts feature a hot galvanized finish and are crafted from durable drop forged steel. Designed for cable assembly attachment, these ring bolts meet stringent quality standards for dependable performance. With a high Weight Load Limit (WLL) of 600 lbs and precise dimensions for secure fastening, these bolts ensure safety and efficiency in various applications.

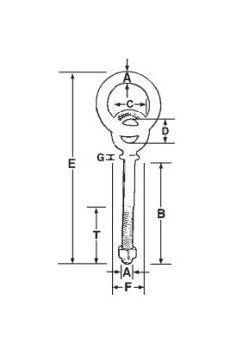

Product Specifications

Specifications Diameter A Shank Length B

3/8" x 2-1/2"

Specifications Id Eye Of Bolt D

3/4"

Specifications Id Eye Of Ring

2-1/2"

Specifications Od Eye Of Bolt C

1-1/2"

Specifications Outside Shoulder F

11/16"

Specifications Overall Length E

6-1/2"

Specifications Thickness At Shoulder G

1/8"

Specifications Thread Length T

1-1/2" "

Specifications Wll Lbs

600

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332722

PSC

5306
