Chicago Drop Forged Ring Bolts - Shoulder, Machine Thread

Name: Chicago Drop Forged Ring Bolts - Shoulder, Machine Thread
Brand: Lexco Cable Manufacturing
SKU: WIR-39d29c
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-39d29c

Chicago Drop Forged Ring Bolts - High-Quality, USA-Made, Ideal for Cable Assembly

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Chicago Drop Forged Ring Bolts are meticulously crafted in the USA by Chicago Hardware & Fixture Company. These hot galvanized steel bolts feature precise dimensions for reliable performance. Designed for cable assembly attachment, these bolts meet stringent quality standards. Not suitable for lifting applications.

Product Specifications

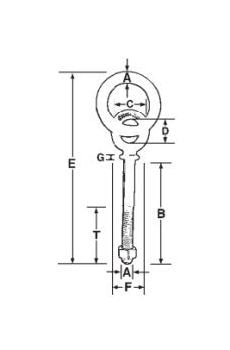

Specifications Diameter A Shank Length B

1/4" x 2"

Specifications Id Eye Of Bolt D

1/2"

Specifications Id Eye Of Ring

1-3/4"

Specifications Od Eye Of Bolt C

Specifications Outside Shoulder F

7/16"

Specifications Overall Length E

4-3/4"

Specifications Thickness At Shoulder G

5/64"

Specifications Thread Length T

1-1/2" "

Specifications Wll Lbs

250

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332722

PSC

5306
