Chicago Drop Forged Ring Bolts - Shoulder - Machine Thread
Chicago Drop Forged Ring Bolts - Shoulder - Machine Thread
SKU:WIR-2186a7
Chicago Drop Forged Ring Bolts - Superior Quality for Your Hardware Needs. Made in USA. Not for lifting applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Chicago Drop Forged Ring Bolts - Shoulder - Machine Thread
$299.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Ring Bolts - Shoulder - Machine Thread
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your hardware assembly with Chicago's Drop Forged Ring Bolts. Made in the USA, these ring bolts offer exceptional durability and performance. With specifications meeting industry standards, these bolts provide reliable attachment options, ensuring safety and stability in applications.

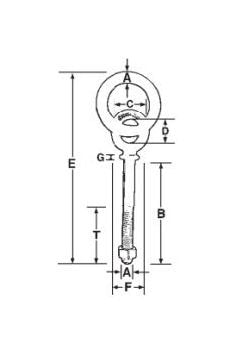

Product Specifications
Specifications Diameter A Shank Length B
1/2" x 6"
Specifications Id Eye Of Bolt D
1"
Specifications Id Eye Of Ring
3"
Specifications Od Eye Of Bolt C
2"
Specifications Outside Shoulder F
7/8"
Specifications Overall Length E
11"
Specifications Thickness At Shoulder G
5/32"
Specifications Thread Length T
3" "
Specifications Wll Lbs
1100
Specifications Wt Per 100 Pcs Lbs
127
CAGE
0T9L4
NAICS
332722
PSC
5306
