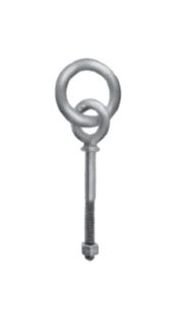

Chicago Drop Forged Ring Bolts Shoulder - Machine Thread

Name: Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
Brand: Lexco Cable Manufacturing
SKU: WIR-0b852a
Price: 199.99 USD
Availability: OutOfStock

SKU:WIR-0b852a

Premium drop forged ring bolts for secure cable assembly attachment, ensuring strength and durability. Made in USA by Chicago Hardware & Fixture Company.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Drop Forged Ring Bolts Shoulder - Machine Thread are expertly crafted in the USA by Chicago Hardware & Fixture Company. Made from drop forged steel, these ring bolts feature precise dimensions for reliable performance. Ideal for cable assembly attachment, these ring bolts are designed with strict adherence to safety guidelines, providing durability and strength for various applications.

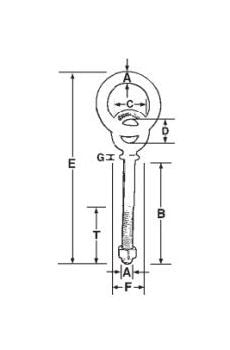

Product Specifications

Specifications Diameter A Shank Length B

5/8" x 6"

Specifications Id Eye Of Bolt D

1-1/4"

Specifications Id Eye Of Ring

2-3/4"

Specifications Od Eye Of Bolt C

2-5/16"

Specifications Outside Shoulder F

1-1/8"

Specifications Overall Length E

11-1/2"

Specifications Thickness At Shoulder G

13/64"

Specifications Thread Length T

3" "

Specifications Wll Lbs

1750

Specifications Wt Per 100 Pcs Lbs

208

CAGE

0T9L4

NAICS

332722

PSC

5306

Chicago Drop Forged Ring Bolts Shoulder - Machine Thread
