Chicago Drop Forged Ring Bolts Shoulder - Screw Thread
Chicago Drop Forged Ring Bolts Shoulder - Screw Thread
SKU:WIR-a5fb72
Chicago Drop Forged Ring Bolts: High-quality, versatile wire rope hardware for secure cable attachments.
Regular price
$359.99
Regular price
Sale price
$359.99
Unit price
per
Initiate Order
Chicago Drop Forged Ring Bolts Shoulder - Screw Thread
$359.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Ring Bolts Shoulder - Screw Thread
$359.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

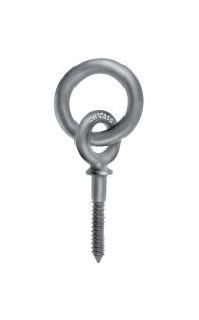

The Chicago Drop Forged Ring Bolts Shoulder - Screw Thread is a high-quality wire rope hardware essential for secure cable attachments in various applications. Made in the USA by Chicago Hardware & Fixture Company, these hot galvanized ring bolts feature precise specifications including 7/8" diameter and 5" shank length. Designed for durability, the drop forged steel eye bolts ensure reliable performance. Welded for strength, these ring bolts should not be used for lifting applications, offering versatile attachment options through the ring or threaded end.

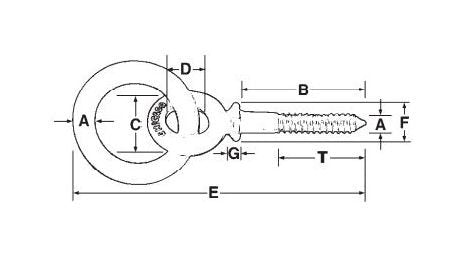

Product Specifications
Specifications Diameter A Shank Length B
7/8" x 5"
Specifications Id Eye Of Bolt D
1-3/4"
Specifications Id Eye Of Ring
3-1/4"
Specifications Od Eye Of Bolt C
3-1/4"
Specifications Outside Shoulder F
1-1/2"
Specifications Overall Length E
12"
Specifications Thickness At Shoulder G
9/32"
Specifications Thread Length T
3-1/4" "
Specifications Wt Per 100 Pcs Lbs
429
CAGE
0T9L4
NAICS
332722
PSC
5306
