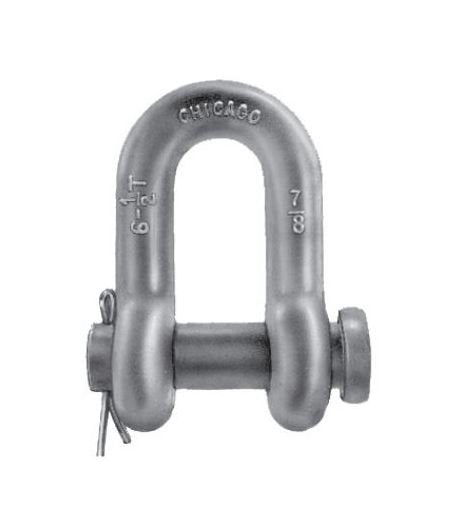

Chicago Drop Forged Round Pin Chain Shackles 5/16"

Name: Chicago Drop Forged Round Pin Chain Shackles 5/16"
Brand: Lexco Cable Manufacturing
SKU: WIR-183fe7
Price: 349.99 USD
Availability: OutOfStock

SKU:WIR-183fe7

Chicago Hardware & Fixture Co. 5/16" Drop Forged Shackles - 3/4 Ton WLL, Made in USA

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

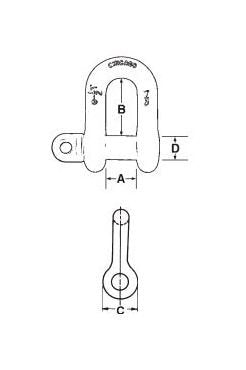

The Chicago Hardware & Fixture Company's Drop Forged Round Pin Chain Shackles in 5/16" size are built to withstand heavy loads up to 3/4 Ton. With a Width @ Eyes A of 17/32" and O.D. Eyes C of 7/8", these shackles offer reliable strength. Precision engineered with a 3/8" Pin or Bolt Diameter D, these shackles are made in the USA for exceptional quality and performance. Ideal for a wide range of industrial applications, these shackles are durable and dependable.

Product Specifications

Specifications Od Eyes C

7/8"

Specifications Pin Or Bolt Diameter D

3/8"

Specifications Size Dia

5/16"

Specifications Width Eyes A

17/32"

Specifications Wll

3/4 Ton

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332999

PSC

5340
