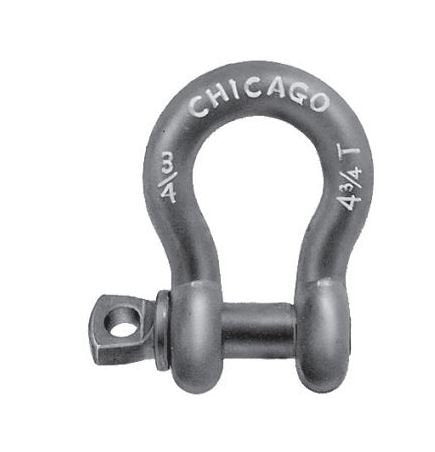

Chicago Drop Forged Screw Pin Anchor Shackle - Galvanized
Chicago Drop Forged Screw Pin Anchor Shackle - Galvanized
SKU:WIR-33e490
Chicago Drop Forged Screw Pin Anchor Shackle - Reliable and Heavy-Duty. Made in the USA.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Chicago Drop Forged Screw Pin Anchor Shackle - Galvanized
$149.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Screw Pin Anchor Shackle - Galvanized
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Drop Forged Screw Pin Anchor Shackle is a robust wire rope hardware solution designed for heavy-duty applications. With a size diameter of 7/16", this shackle has a Working Load Limit (WLL) of 1-1/2 Ton, ensuring secure and reliable operations. Manufactured by Chicago Hardware & Fixture Company in the USA, this shackle boasts a Width @ Eyes A of 23/32" and an O.D. of Eyes D at 1-1/8" for enhanced strength and durability. The Pin or Bolt Diameter E measures 1/2", providing a sturdy connection point. Weighing 53.5 lbs per 100 pieces, this galvanized screw pin shackle is a top choice for industries that require uncompromising quality and performance.
Product Specifications
Specifications Od Eyes D
1-1/8"
Specifications Pin Or Bolt Diameter E
1/2"
Specifications Size Dia
7/16"
Specifications Width Eyes A
23/32"
Specifications Wll
1-1/2 Ton
Specifications Wt Per 100 Pcs Lbs
53.5
CAGE
0T9L4
NAICS
332999
PSC
5340
