Chicago Drop Forged Screw Pin Galvanized Shackle
Chicago Drop Forged Screw Pin Galvanized Shackle
SKU:WIR-0e2b9c
Premium Chicago Drop Forged Screw Pin Galvanized Shackle for reliable lifting and towing applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Chicago Drop Forged Screw Pin Galvanized Shackle
$189.99
Quantity: 1
Claim Your Seller Account
Chicago Drop Forged Screw Pin Galvanized Shackle
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

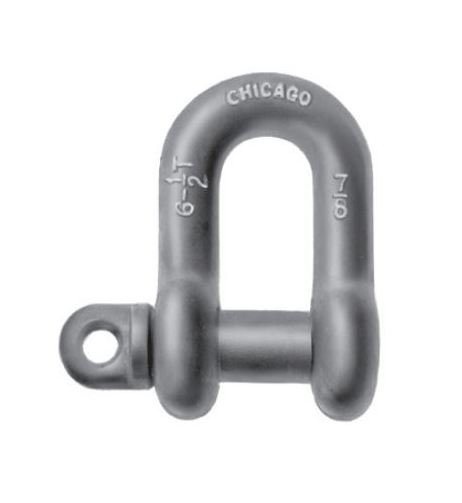

The Chicago Drop Forged Screw Pin Galvanized Shackle is a premium wire rope hardware manufactured by Chicago Hardware & Fixture Company in the USA. These shackles are available in self-colored or hot galvanized finishes, with rust preventative coatings available upon request. Safety shackles meet strict specifications with bolt, nut, and cotter variations. Each shackle is heat-treated and marked with size, working load limit, and trademark for traceability. With a safety factor of 6 to 1, these shackles are tested for uniform performance under direct tension. Known for their reliability and durability, these shackles are essential for various lifting and towing applications.
Ready to Grow Without Cash Flow Constraints?

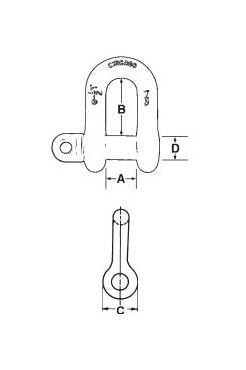

Product Specifications
Specifications Length B
1-11/16"
Specifications Length Tolerance
1/8"
Specifications Od Eyes C
1-1/4"
Specifications Pin Or Bolt Diameter D
5/8"
Specifications Size Dia
1/2"
Specifications Width A
13/16"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
2
Specifications Wt Per 100 Pcs Lbs
69.5
CAGE
0T9L4
NAICS
332999
PSC
5340
