Chicago Drop Forged Shoulder Ring Bolt - Screw Thread Eye Bolt

Name: Chicago Drop Forged Shoulder Ring Bolt - Screw Thread Eye Bolt
Brand: Lexco Cable Manufacturing
SKU: WIR-a66f28
Price: 49.99 USD
Availability: OutOfStock

SKU:WIR-a66f28

Chicago Drop Forged Shoulder Ring Bolt - Screw Thread Eye Bolt: Versatile, durable, institutional-grade hardware solution for secure cable assembly attachments.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

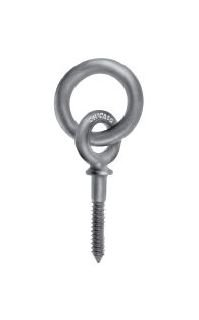

The Chicago Drop Forged Shoulder Ring Bolt with Screw Thread Eye Bolt is a versatile hardware solution made in the USA by Chicago Hardware & Fixture Company. Featuring hot galvanized finish, these drop forged steel bolts are ideal for cable assemblies. With precise specifications meeting institutional standards, including a 5/16" diameter and 2-1/4" shank length, these bolts ensure durable and secure attachment. Designed for reliability and performance, the shoulder ring bolts are not for lifting applications, providing peace of mind in various industrial settings.

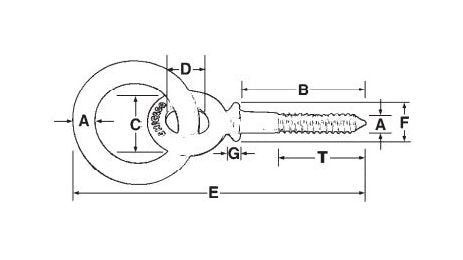

Product Specifications

Specifications Diameter A Shank Length B

5/16" x 2-1/4"

Specifications Id Eye Of Bolt D

5/8"

Specifications Id Eye Of Ring

Specifications Od Eye Of Bolt C

1-1/4"

Specifications Outside Shoulder F

9/16"

Specifications Overall Length E

5-1/2"

Specifications Thickness At Shoulder G

3/32"

Specifications Thread Length T

1-5/8" "

Specifications Wt Per 100 Pcs Lbs

28.9

CAGE

0T9L4

NAICS

332722

PSC

5306
