Chicago Drop Forged Shoulder Ring Bolt with Screw Thread

Name: Chicago Drop Forged Shoulder Ring Bolt with Screw Thread
Brand: Lexco Cable Manufacturing
SKU: WIR-58e3f6
Price: 149.99 USD
Availability: OutOfStock

SKU:WIR-58e3f6

Chicago Drop Forged Shoulder Ring Bolt - Reliable, durable bolt for secure cable assembly attachment.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

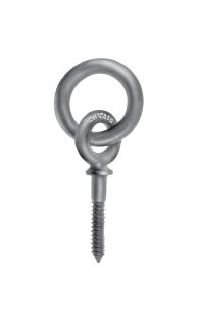

The Chicago Drop Forged Shoulder Ring Bolt with Screw Thread is engineered for robust cable assembly attachment. Crafted from drop forged steel, this bolt features a hot galvanized finish for enhanced durability. Its precise specifications ensure reliable performance, while the welded construction guarantees strength. Note that this bolt is not intended for lifting applications, meeting industry safety standards.

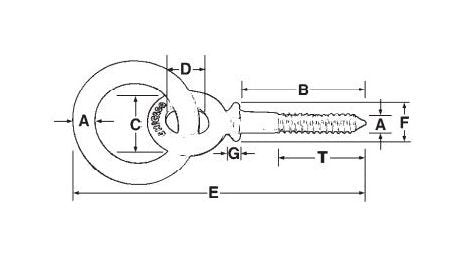

Product Specifications

Specifications Diameter A Shank Length B

1/4" x 2"

Specifications Id Eye Of Bolt D

1/2"

Specifications Id Eye Of Ring

1-3/4"

Specifications Od Eye Of Bolt C

Specifications Outside Shoulder F

7/16"

Specifications Overall Length E

4-3/4"

Specifications Thickness At Shoulder G

5/64"

Specifications Thread Length T

1-1/2" "

Specifications Wt Per 100 Pcs Lbs

15.3

CAGE

0T9L4

NAICS

332722

PSC

5306
