Chicago Eye Bolt - Standard Shank Lengths Plain Pattern
Chicago Eye Bolt - Standard Shank Lengths Plain Pattern
SKU:WIR-690db5
Chicago Machinery Eye Bolt - Premium quality eye bolt with 4000 lbs WLL & 5/8"-11 shank. Made in the USA.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chicago Eye Bolt - Standard Shank Lengths Plain Pattern
$24.99
Quantity: 1
Claim Your Seller Account
Chicago Eye Bolt - Standard Shank Lengths Plain Pattern
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

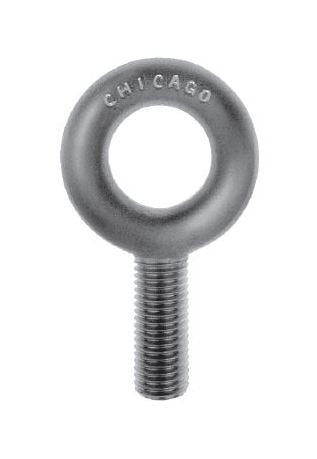

The Chicago Machinery Eye Bolt, featuring a sturdy 5/8"-11 shank and a 1-3/8" I.D. eye, is an essential component in securing heavy loads. With a Working Load Limit (WLL) of 4000 lbs, this eye bolt guarantees reliable performance with a safety factor of 5 to 1. Made in the USA by Chicago Hardware & Fixture Company, this premium quality product meets stringent procurement standards for government and institutional buyers.
Product Specifications
Specifications Id Eye
1-3/8"
Specifications Max Lengths
4-1/2"
Specifications Od Eye
2-1/2"
Specifications Overall Length In
4-1/4"
Specifications Shank Dia Thread Size
5/8"-11
Specifications Shank Length
1-3/4"
Specifications Wll Lbs
4000
CAGE
0T9L4
NAICS
332722
PSC
5306
