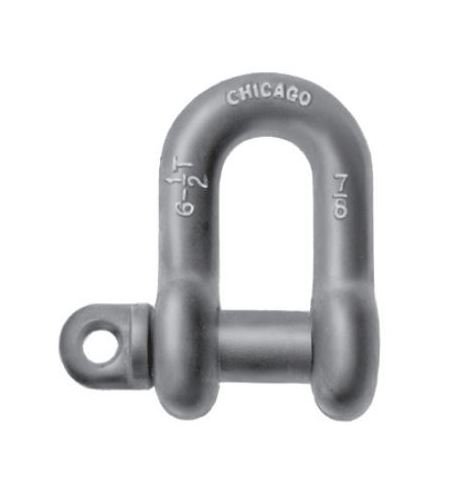

Chicago Hardware 3/4" Drop Forged Screw Pin Self Colored Shackle

Name: Chicago Hardware 3/4" Drop Forged Screw Pin Self Colored Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-918c95
Price: 199.99 USD
Availability: OutOfStock

SKU:WIR-918c95

Durable 3/4" Drop Forged Screw Pin Shackle for secure lifting needs. Heat-treated and marked for safety. Meets Fed Specs RR-C-271D Type IVA.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Meet your lifting needs with the Chicago Hardware 3/4" Drop Forged Screw Pin Self Colored Shackle. Constructed with precision and durability, this shackle is heat-treated, marked with size and working load limit, and adheres to Federal Specifications RR-C-271D Type IVA. Guaranteed safety and performance for your applications.

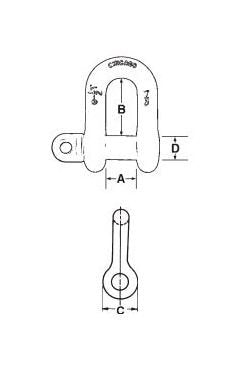

Product Specifications

Specifications Length B

2-5/16"

Specifications Length Tolerance

1/4"

Specifications Od Eyes C

1-7/8"

Specifications Pin Or Bolt Diameter D

7/8"

Specifications Size Dia

3/4"

Specifications Width A

1-1/4"

Specifications Width Tolerance

1/16"

Specifications Wll Tons

4-3/4

Specifications Wt Per 100 Pcs Lbs

212

CAGE

0T9L4

NAICS

332999

PSC

5340

Chicago Hardware 3/4" Drop Forged Screw Pin Self Colored Shackle
