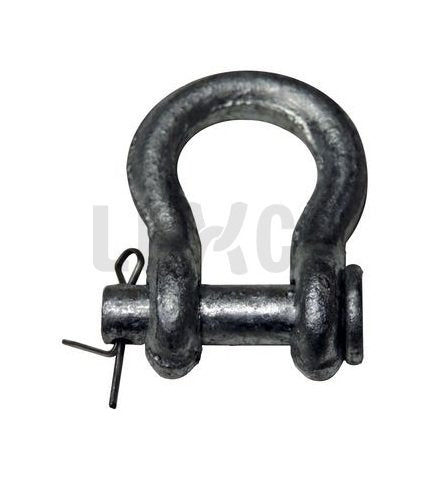

Chicago Hardware 3/4" Galvanized Round Pin Anchor Shackle

Chicago Hardware 3/4" Galvanized Round Pin Anchor Shackle

SKU:WIR-1eaf7f

Chicago Hardware 3/4" Galvanized Round Pin Anchor Shackle - Reliable, durable, and compliant with Federal Specifications RR-C-271D Type IVA. Ideal for lifting and towing applications.

Regular price $189.99
Regular price Sale price $189.99
Sale

Initiate Order

Chicago Hardware 3/4" Galvanized Round Pin Anchor Shackle

Chicago Hardware 3/4" Galvanized Round Pin Anchor Shackle

$189.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware 3/4" Galvanized Round Pin Anchor Shackle

Chicago Hardware 3/4" Galvanized Round Pin Anchor Shackle

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Hardware Drop Forged Round Pin Anchor Shackle is designed for reliability and durability in wire rope applications. Featuring a galvanized finish for corrosion resistance, these shackles are heat-treated for maximum strength. With a working load limit of 4-3/4 tons and precise markings for easy identification, these shackles meet Federal Specifications RR-C-271D Type IVA standards. Suitable for lifting and towing operations, these shackles offer safety and performance you can trust.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

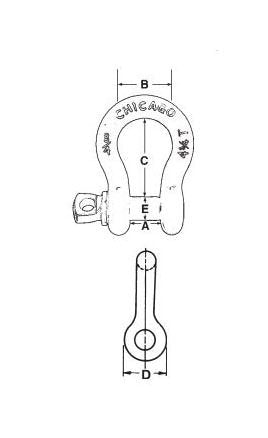

Product Specifications

Specifications Length C
3"
Specifications Length Tolerance
1/4"
Specifications Od Eyes D
1-7/8"
Specifications Pin Or Bolt Diameter E
7/8"
Specifications Size Dia
3/4"
Specifications Width Bow B
2"
Specifications Width Eyes A
1-1/4"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
4-3/4
Specifications Wt Per 100 Pcs Lbs
245.5
CAGE
0T9L4
NAICS
332999
PSC
5340
