Chicago Hardware 3/4" x 4-1/2" Screw Thread Eye Bolts Shoulder

Name: Chicago Hardware 3/4" x 4-1/2" Screw Thread Eye Bolts Shoulder
Brand: Lexco Cable Manufacturing
SKU: WIR-718f1f
Price: 189.99 USD
Availability: OutOfStock

SKU:WIR-718f1f

Chicago Hardware's premium Screw Thread Eye Bolts Shoulder for secure cable assembly attachment

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your cable assemblies with the precision-engineered Chicago Hardware 3/4" x 4-1/2" Screw Thread Eye Bolts Shoulder. These versatile eye bolts, made in the USA, feature cone points and lag screw threads for secure attachment. With dimensions meeting exacting standards for Diameter, Eye Sizes, Thread Length, and more, this bolt ensures reliability and durability in various applications.

Product Specifications

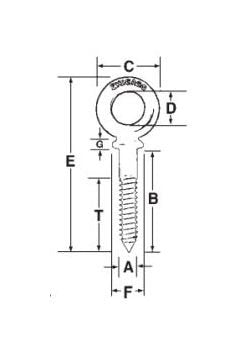

Specifications Diameter A Shank Length B

3/4" x 4-1/2"

Specifications Inside Eye D

1-1/2"

Specifications Outside Eye C

2-3/4"

Specifications Outside Shoulder F

1-3/8"

Specifications Overall Length E

7-3/4"

Specifications Thickness At Shoulder G

1/4"

Specifications Thread Length T

3" "

Specifications Wt Per 100 Pcs Lbs

120

CAGE

0T9L4

NAICS

332722

PSC

5306

Chicago Hardware 3/4" x 4-1/2" Screw Thread Eye Bolts Shoulder
