Chicago Hardware 5/16" x 2-1/4" Screw Thread Eye Bolts Shoulder
Chicago Hardware 5/16" x 2-1/4" Screw Thread Eye Bolts Shoulder
SKU:WIR-888cbf
Chicago Hardware premium 5/16" x 2-1/4" Screw Thread Eye Bolts Shoulder - USA-made quality for secure cable assembly attachment.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Chicago Hardware 5/16" x 2-1/4" Screw Thread Eye Bolts Shoulder
$89.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware 5/16" x 2-1/4" Screw Thread Eye Bolts Shoulder
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware 5/16" x 2-1/4" Screw Thread Eye Bolts Shoulder is a premium wire rope hardware designed to meet the needs of both consumer and institutional buyers. Made in the USA by Chicago Hardware & Fixture Company, these eye bolts feature a lag screw thread and cone points, ensuring secure attachment to cable assemblies. With precise specifications including a diameter of 5/16" x 2-1/4" and an overall length of 3-3/4", these eye bolts provide reliable performance for a wide range of applications. Trust Chicago Hardware for excellence in quality and durability.

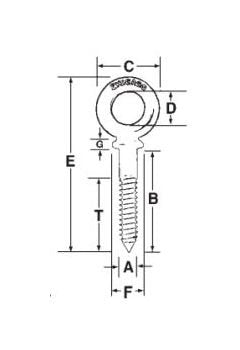

Product Specifications
Specifications Diameter A Shank Length B
5/16" x 2-1/4"
Specifications Inside Eye D
5/8"
Specifications Outside Eye C
1-1/4"
Specifications Outside Shoulder F
9/16"
Specifications Overall Length E
3-3/4"
Specifications Thickness At Shoulder G
3/32"
Specifications Thread Length T
1-5/8" "
Specifications Wt Per 100 Pcs Lbs
12
CAGE
0T9L4
NAICS
332722
PSC
5306
