Chicago Hardware 5/8" x 4-1/2" Screw Thread Eye Bolts Shoulder

Chicago Hardware 5/8" x 4-1/2" Screw Thread Eye Bolts Shoulder

SKU:WIR-5b6fe2

Enhance cabling setups with USA-made screw thread eye bolts. Features cone points, lag screw thread, and 86 lbs weight per 100 pcs.

Regular price $215.99
Regular price Sale price $215.99
Sale

Initiate Order

Chicago Hardware 5/8" x 4-1/2" Screw Thread Eye Bolts Shoulder

Chicago Hardware 5/8" x 4-1/2" Screw Thread Eye Bolts Shoulder

$215.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware 5/8" x 4-1/2" Screw Thread Eye Bolts Shoulder

Chicago Hardware 5/8" x 4-1/2" Screw Thread Eye Bolts Shoulder

$215.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your cabling setup with the Chicago Hardware 5/8" x 4-1/2" Screw Thread Eye Bolts Shoulder. Made in the USA, these eye bolts feature cone points and a lag screw thread for secure attachment to cable assemblies. With precise dimensions including a 2-5/16" outside eye, 1-1/4" inside eye, and a sturdy 1-1/8" outside shoulder, these bolts provide reliable strength and durability. The 86 lbs weight per 100 pieces ensures you have an ample supply for your industrial needs.

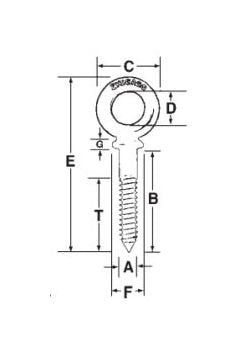

Product Specifications

Specifications Diameter A Shank Length B
5/8" x 4-1/2"
Specifications Inside Eye D
1-1/4"
Specifications Outside Eye C
2-5/16"
Specifications Outside Shoulder F
1-1/8"
Specifications Overall Length E
7-1/4"
Specifications Thickness At Shoulder G
13/64"
Specifications Thread Length T
2-1/2" "
Specifications Wt Per 100 Pcs Lbs
86
CAGE
0T9L4
NAICS
332722
PSC
5306
