Chicago Hardware 7/16" Screw Pin Self Colored Shackle

Name: Chicago Hardware 7/16" Screw Pin Self Colored Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-a4f6ea
Price: 189.99 USD
Availability: OutOfStock

SKU:WIR-a4f6ea

Premium 7/16" Screw Pin Self Colored Shackle with 1-1/2T WLL, heat-treated for safety, meets Federal Spec RR-C-271D Type IVA.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

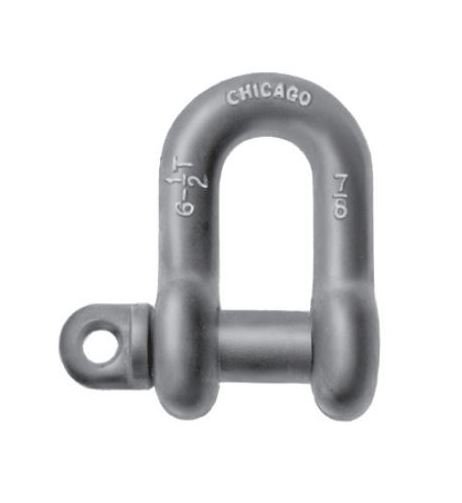

The Chicago Hardware 7/16" Screw Pin Self Colored Shackle is a premium drop forged shackle made in the USA. Designed for wire rope hardware applications, this shackle features a 1-1/2 ton working load limit, heat-treated construction, and permanent markings for easy identification. Compliant with Federal Specifications RR-C-271D Type IVA, this shackle ensures safety and reliability in lifting and towing operations.

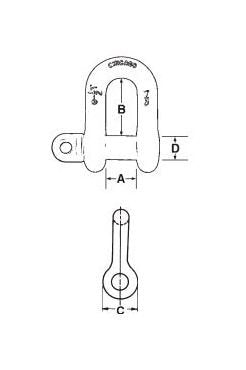

Product Specifications

Specifications Length B

1-1/2"

Specifications Length Tolerance

1/8"

Specifications Od Eyes C

1-1/8"

Specifications Pin Or Bolt Diameter D

1/2"

Specifications Size Dia

7/16"

Specifications Width A

23/32"

Specifications Width Tolerance

1/16"

Specifications Wll Tons

1-1/2

Specifications Wt Per 100 Pcs Lbs

45.5

CAGE

0T9L4

NAICS

332999

PSC

5340
