Chicago Hardware 7/8" Galvanized Screw Pin Chain Shackle

Chicago Hardware 7/8" Galvanized Screw Pin Chain Shackle

SKU:WIR-a5510d

Chicago Hardware 7/8" Galvanized Screw Pin Chain Shackle - High WLL, Reliable Strength & Safety, Meets Federal Specs

Regular price $299.99
Regular price Sale price $299.99
Sale

Initiate Order

Chicago Hardware 7/8" Galvanized Screw Pin Chain Shackle

Chicago Hardware 7/8" Galvanized Screw Pin Chain Shackle

$299.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware 7/8" Galvanized Screw Pin Chain Shackle

Chicago Hardware 7/8" Galvanized Screw Pin Chain Shackle

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

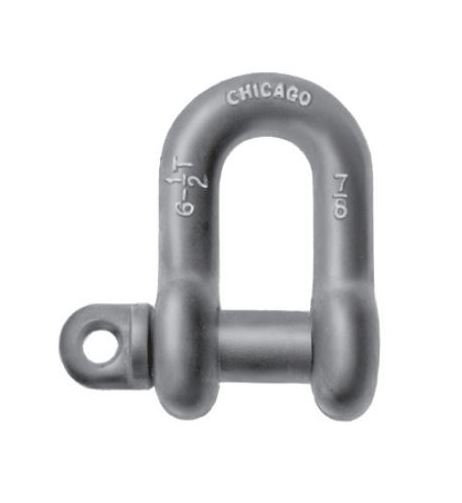

The Chicago Hardware 7/8" Galvanized Screw Pin Chain Shackle is a top-quality industrial-grade shackle made for heavy-duty applications. This drop forged shackle features a high working load limit of 6-1/2 tons, ensuring reliable strength and safety. With precise dimensions and a durable galvanized finish, this shackle is ideal for wire rope loops, lifting, and towing tasks. Meeting Federal Specifications RR-C-271D Type IVA, this shackle is heat-treated, marked with essential specifications, and guarantees performance and durability under demanding working conditions.

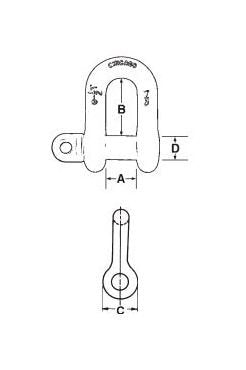

Product Specifications

Specifications Length B
2-7/8"
Specifications Length Tolerance
1/4"
Specifications Od Eyes C
2-1/8"
Specifications Pin Or Bolt Diameter D
1"
Specifications Size Dia
7/8"
Specifications Width A
1-7/16"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
6-1/2
Specifications Wt Per 100 Pcs Lbs
320
CAGE
0T9L4
NAICS
332999
PSC
5340
