Chicago Hardware 7/8" x 5" Screw Thread Eye Bolts Regular

Name: Chicago Hardware 7/8" x 5" Screw Thread Eye Bolts Regular
Brand: Lexco Cable Manufacturing
SKU: WIR-5e387e
Price: 199.99 USD
Availability: OutOfStock

SKU:WIR-5e387e

Chicago Hardware's heavy-duty 7/8" x 5" Screw Thread Eye Bolts for secure cable assembly attachment.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Hardware 7/8" x 5" Screw Thread Eye Bolts Regular are premium wire rope hardware attachments designed for heavy-duty applications. Manufactured in the USA by Chicago Hardware & Fixture Company, these eye bolts feature cone points and a lag screw thread for secure cable assembly attachment. With precise dimensions including a 3-1/2" outside eye and a 1-3/4" inside eye, these bolts offer durability and reliability in industrial settings. The 166 lbs weight per 100 pieces ensures high-quality construction suited for institutional and government procurement needs.

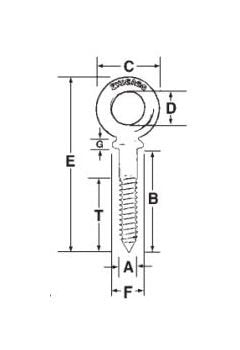

Product Specifications

Specifications Diameter A Shank Length B

7/8" x 5"

Specifications Inside Eye D

1-3/4"

Specifications Outside Eye C

3-1/2"

Specifications Overall Length E

8-1/4"

Specifications Thread Length T

3-1/4" "

Specifications Wt Per 100 Pcs Lbs

166

CAGE

0T9L4

NAICS

332722

PSC

5306
