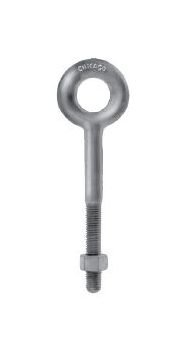

Chicago Hardware Drop Forged Eye Bolt - 7/8" x 18"

Name: Chicago Hardware Drop Forged Eye Bolt - 7/8" x 18"
Brand: Lexco Cable Manufacturing
SKU: WIR-1120c9
Price: 799.99 USD
Availability: OutOfStock

SKU:WIR-1120c9

Chicago Hardware Drop Forged Eye Bolt - Reliable, Durable, and Customizable for all applications.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your hardware with our Chicago Hardware Drop Forged Eye Bolt Regular featuring heat-treated steel, hot galvanized finish, and a 5 to 1 safety factor. Designed for direct tension applications, this machine-threaded eye bolt guarantees reliability and durability under various conditions. Custom lengths available upon request.

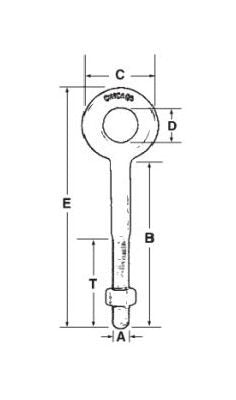

Product Specifications

Specifications Diameter A Shank Length B

7/8" x 18"

Specifications Inside Eye D

1-3/4"

Specifications Outside Eye C

3-1/2"

Specifications Overall Length E

21-1/2"

Specifications Thread Length T

6" "

Specifications Wll Lbs

7000

Specifications Wt Per 100 Pcs Lbs

464

CAGE

0T9L4

NAICS

332722

PSC

5306
