Chicago Hardware Drop Forged Eye Bolt - Machine Thread

Name: Chicago Hardware Drop Forged Eye Bolt - Machine Thread
Brand: Lexco Cable Manufacturing
SKU: WIR-29d242
Price: 349.99 USD
Availability: OutOfStock

SKU:WIR-29d242

Durable Chicago Hardware Drop Forged Eye Bolt for secure cable attachments with precise specifications.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

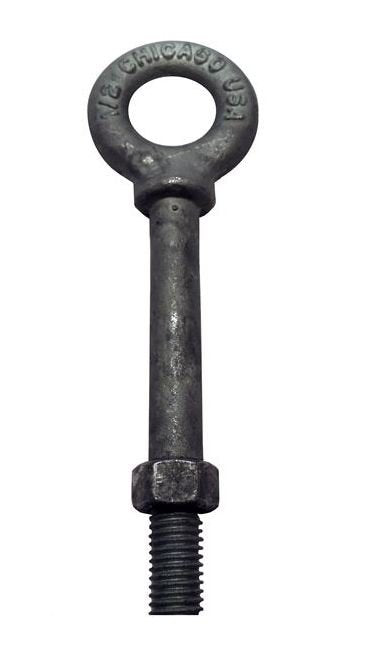

The Chicago Hardware Drop Forged Eye Bolt Shoulder with Machine Thread is crafted from heat-treated steel, featuring a hot galvanized finish for durability. With a 5:1 safety factor, these eye bolts meet stringent standards for direct tension pulls. Ideal for cable assemblies, these machine-threaded eye bolts boast precise specifications, including a 1" x 9" diameter and shank length. Customize with special shank and thread lengths for your specific needs.

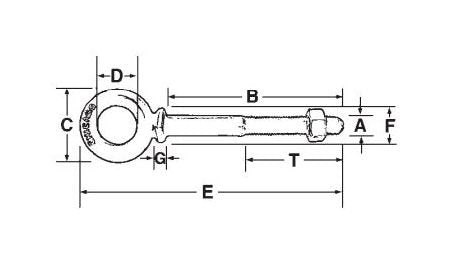

Product Specifications

Specifications Diameter A Shank Length B

1" x 9"

Specifications Inside Eye D

Specifications Outside Eye C

3-3/4"

Specifications Outside Shoulder F

1-3/4"

Specifications Overall Length E

13-1/4"

Specifications Thickness At Shoulder G

5/16"

Specifications Thread Length T

4" "

Specifications Wll Lbs

10000

Specifications Wt Per 100 Pcs Lbs

404

CAGE

0T9L4

NAICS

332722

PSC

5306
