Chicago Hardware Drop Forged Eye Bolt Shoulder - Machine Thread

Chicago Hardware Drop Forged Eye Bolt Shoulder - Machine Thread

SKU:WIR-e10b50

Chicago Hardware Drop Forged Eye Bolt for heavy-duty applications. Made from heat-treated steel for durability.

Regular price $189.99
Regular price Sale price $189.99
Sale

Initiate Order

Chicago Hardware Drop Forged Eye Bolt Shoulder - Machine Thread

Chicago Hardware Drop Forged Eye Bolt Shoulder - Machine Thread

$189.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware Drop Forged Eye Bolt Shoulder - Machine Thread

Chicago Hardware Drop Forged Eye Bolt Shoulder - Machine Thread

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

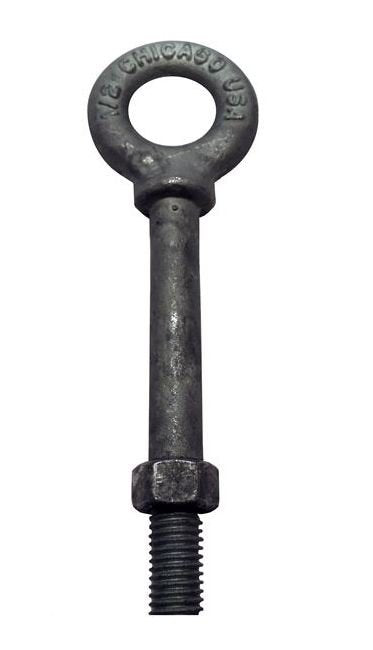

The Chicago Hardware Drop Forged Eye Bolt Shoulder - Machine Thread is a superior choice for heavy-duty applications. Made from drop forged heat-treated steel with a hot galvanized finish, these machine threaded eye bolts meet stringent safety standards for reliability and durability. Featuring precise specifications including a 5/8" x 4-1/2" diameter and shank length, a working load limit of 3500 lbs, and a 5 to 1 safety factor, these eye bolts are designed for secure cable attachments. Ideal for industrial, construction, and rigging applications where strength and safety are paramount.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

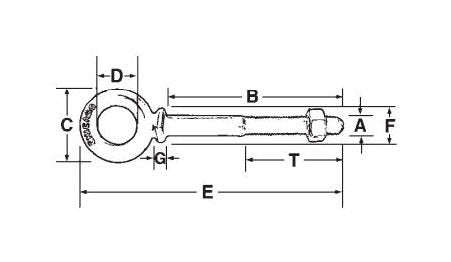

Product Specifications

Specifications Diameter A Shank Length B
5/8" x 4-1/2"
Specifications Inside Eye D
1-1/4"
Specifications Outside Eye C
2-5/16"
Specifications Outside Shoulder F
1-1/8"
Specifications Overall Length E
7-1/4"
Specifications Thickness At Shoulder G
13/64"
Specifications Thread Length T
2" "
Specifications Wll Lbs
3500
Specifications Wt Per 100 Pcs Lbs
99
CAGE
0T9L4
NAICS
332722
PSC
5306
