Chicago Hardware Drop Forged Eye Bolts - 3/4" x 4-1/2"
Chicago Hardware Drop Forged Eye Bolts - 3/4" x 4-1/2"
SKU:WIR-904aaf
Premium Chicago Hardware Drop Forged Eye Bolts with 5200lbs WLL, ideal for heavy-duty applications. Customization available.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Eye Bolts - 3/4" x 4-1/2"
$189.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Eye Bolts - 3/4" x 4-1/2"
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

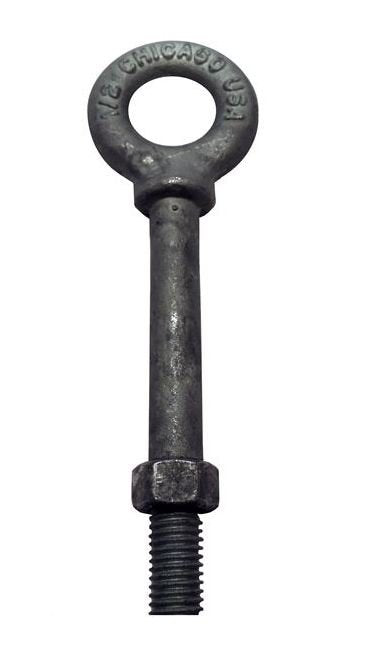

The Chicago Hardware Drop Forged Eye Bolts are precision engineered from heat treated steel with a hot galvanized finish. These machine-threaded eye bolts, meeting a 5:1 safety factor, boast a WLL of 5200lbs. Designed for direct tension pulls, these eye bolts deliver exceptional performance and reliability. Additional customization options available for specific project needs.

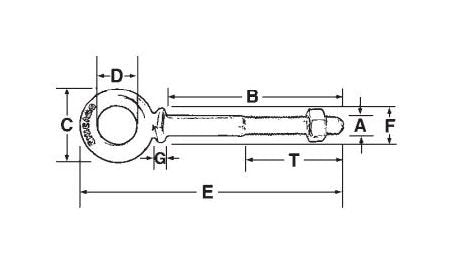

Product Specifications
Specifications Diameter A Shank Length B
3/4" x 4-1/2"
Specifications Inside Eye D
1-1/2"
Specifications Outside Eye C
2-3/4"
Specifications Outside Shoulder F
1-3/8"
Specifications Overall Length E
7-3/4"
Specifications Thickness At Shoulder G
1/4"
Specifications Thread Length T
2-1/2" "
Specifications Wll Lbs
5200
Specifications Wt Per 100 Pcs Lbs
152
CAGE
0T9L4
NAICS
332722
PSC
5306
