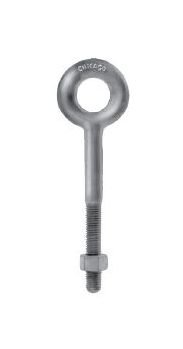

Chicago Hardware Drop Forged Eye Bolts - 3/4" x 6"

Name: Chicago Hardware Drop Forged Eye Bolts - 3/4" x 6"
Brand: Lexco Cable Manufacturing
SKU: WIR-5f967e
Price: 299.99 USD
Availability: OutOfStock

SKU:WIR-5f967e

High-strength Chicago Hardware Drop Forged Eye Bolts - Ideal for heavy-duty applications

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Chicago Hardware Drop Forged Eye Bolts feature heat-treated steel with a hot galvanized finish for durability. These machine-threaded eye bolts, tested for a safety factor of 5 to 1, are ideal for direct tension applications. With a working load limit of 5200 lbs, these eye bolts meet stringent industry standards and are designed for reliability and performance, suitable for a wide range of institutional and government applications.

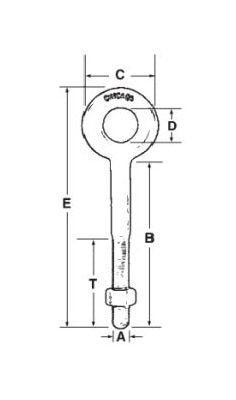

Product Specifications

Specifications Diameter A Shank Length B

3/4" x 6"

Specifications Inside Eye D

1-1/2"

Specifications Outside Eye C

2-3/4"

Specifications Overall Length E

8-3/4"

Specifications Thread Length T

3" "

Specifications Wll Lbs

5200

Specifications Wt Per 100 Pcs Lbs

160

CAGE

0T9L4

NAICS

332722

PSC

5306

Chicago Hardware Drop Forged Eye Bolts - 3/4" x 6"
