Chicago Hardware Drop Forged Eye Bolts - Machine Thread 1" x 18"
Chicago Hardware Drop Forged Eye Bolts - Machine Thread 1" x 18"
SKU:WIR-e23a27
Chicago Hardware Drop Forged Eye Bolts - Premium quality steel bolts with machine threads for reliable performance and safety compliance.
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Eye Bolts - Machine Thread 1" x 18"
$219.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Eye Bolts - Machine Thread 1" x 18"
$219.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

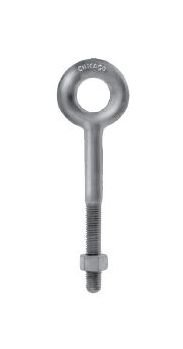

Chicago Hardware Drop Forged Eye Bolts are constructed from heat-treated steel with a hot galvanized finish. These machine-threaded eye bolts meet a 5 to 1 safety factor standard, ensuring reliability and durability. Designed for direct tension pulls, these bolts are suitable for various applications. Deviations from recommended use may impact working load limits. Custom shank and thread lengths are available for specific needs.

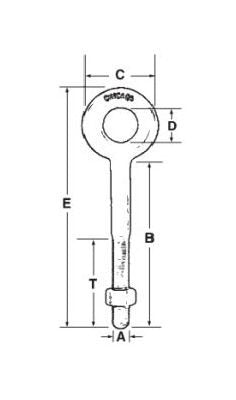

Product Specifications
Specifications Diameter A Shank Length B
1" x 18"
Specifications Inside Eye D
2"
Specifications Outside Eye C
3-3/4"
Specifications Overall Length E
21-3/4"
Specifications Thread Length T
6" "
Specifications Wll Lbs
10000
Specifications Wt Per 100 Pcs Lbs
584
CAGE
0T9L4
NAICS
332722
PSC
5306
