Chicago Hardware Drop Forged Eye Bolts - Machine Thread 1" x 24"

Name: Chicago Hardware Drop Forged Eye Bolts - Machine Thread 1" x 24"
Brand: Lexco Cable Manufacturing
SKU: WIR-32a4b4
Price: 275.99 USD
Availability: OutOfStock

SKU:WIR-32a4b4

Chicago Hardware's Drop Forged Eye Bolts - Machine Thread for reliable cable assembly attachment.

$275.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

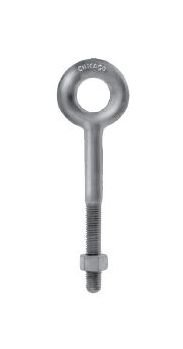

Chicago Hardware's Drop Forged Eye Bolts are heat-treated steel with hot galvanized finish. These machine-threaded eye bolts, with a 5:1 safety factor, ensure reliable performance. Designed for direct tension applications, these bolts provide a secure attachment point for cable assemblies. Custom shank and thread lengths available.

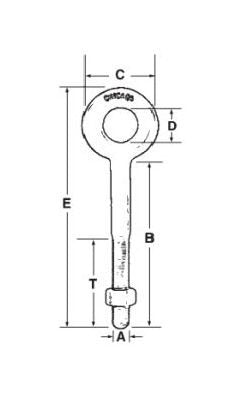

Product Specifications

Specifications Diameter A Shank Length B

1" x 24"

Specifications Inside Eye D

Specifications Outside Eye C

3-3/4"

Specifications Overall Length E

27-3/4"

Specifications Thread Length T

6" "

Specifications Wll Lbs

10000

Specifications Wt Per 100 Pcs Lbs

716

CAGE

0T9L4

NAICS

332722

PSC

5306
