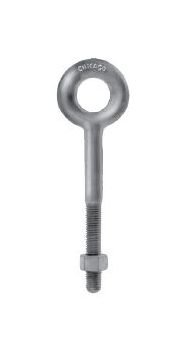

Chicago Hardware Drop Forged Eye Bolts Regular - Machine Thread 5/16"

Chicago Hardware Drop Forged Eye Bolts Regular - Machine Thread 5/16"

SKU:WIR-ede180

Reliable Chicago Hardware Drop Forged Eye Bolts with Machine Thread for secure cable attachments. Heat-treated steel with hot galvanized finish and 5:1 safety factor.

Regular price $189.99
Regular price Sale price $189.99
Sale

Initiate Order

Chicago Hardware Drop Forged Eye Bolts Regular - Machine Thread 5/16"

Chicago Hardware Drop Forged Eye Bolts Regular - Machine Thread 5/16"

$189.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware Drop Forged Eye Bolts Regular - Machine Thread 5/16"

Chicago Hardware Drop Forged Eye Bolts Regular - Machine Thread 5/16"

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Chicago Hardware's Drop Forged Eye Bolts Regular with Machine Thread are crafted from heat-treated steel and feature a hot galvanized finish. Designed for secure cable attachments, these bolts come with a 5:1 safety factor, ensuring reliability under direct tension. Any deviations from recommended usage may compromise working load limits. With custom shank and thread lengths available, these eye bolts offer versatility and durability suited for a range of applications.

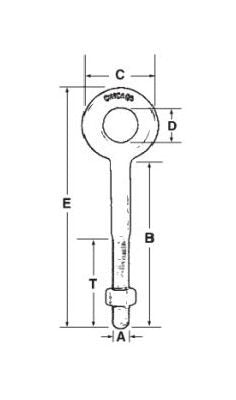

Product Specifications

Specifications Diameter A Shank Length B
5/16" x 3-1/4"
Specifications Inside Eye D
5/8"
Specifications Outside Eye C
1-1/4"
Specifications Overall Length E
4-1/2"
Specifications Thread Length T
1-1/2" "
Specifications Wll Lbs
800
Specifications Wt Per 100 Pcs Lbs
15
CAGE
0T9L4
NAICS
332722
PSC
5306
