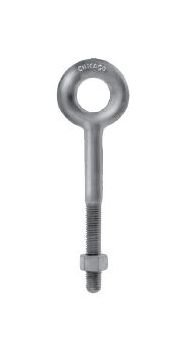

Chicago Hardware Drop Forged Eye Bolts - Regular Thread
Chicago Hardware Drop Forged Eye Bolts - Regular Thread
SKU:WIR-3272e5
Premium Drop Forged Eye Bolts for secure and safe lifting operations. Custom sizes available.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Eye Bolts - Regular Thread
$259.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Eye Bolts - Regular Thread
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware Drop Forged Eye Bolts are precision-crafted from heat-treated steel with a hot galvanized finish. Designed for safety-critical tasks, these machine thread eye bolts undergo rigorous testing to ensure a 5 to 1 safety factor. Any deviations impact load limits significantly. Whether for angular lifts or standard applications, these eye bolts guarantee reliability and durability. Custom shank and thread lengths available upon request.

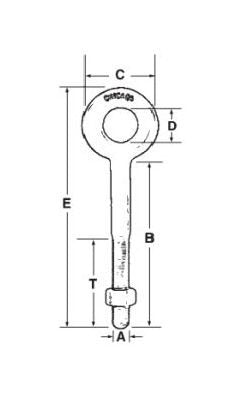

Product Specifications
Specifications Diameter A Shank Length B
1/2" x 12"
Specifications Inside Eye D
1"
Specifications Outside Eye C
2"
Specifications Overall Length E
14"
Specifications Thread Length T
4" "
Specifications Wll Lbs
2200
Specifications Wt Per 100 Pcs Lbs
96
CAGE
0T9L4
NAICS
332722
PSC
5306
