Chicago Hardware Drop Forged Eye Bolts Shoulder - Machine Thread
Chicago Hardware Drop Forged Eye Bolts Shoulder - Machine Thread
SKU:WIR-d8b122
Chicago Hardware's precision-engineered Drop Forged Eye Bolts for secure and reliable cable attachments.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Eye Bolts Shoulder - Machine Thread
$289.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Eye Bolts Shoulder - Machine Thread
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

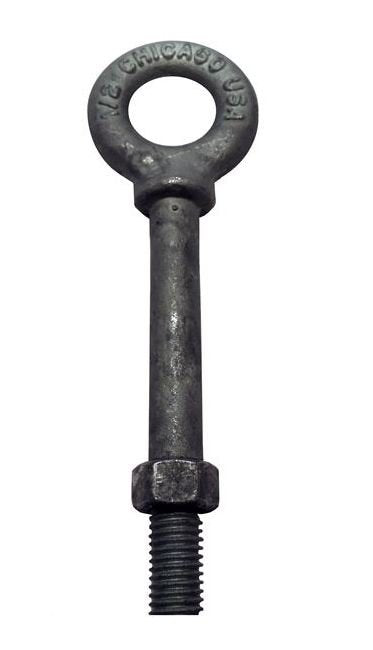

Chicago Hardware's Drop Forged Eye Bolts Shoulder with Machine Thread are constructed from heat treated steel with a hot galvanized finish for durability. These eye bolts are assembled with precision, featuring machine threading and hex nuts for secure applications. With a 5:1 safety factor, these eye bolts ensure reliable performance under direct tension. Ideal for cable assemblies, these eye bolts offer customized shank and thread lengths for versatile usage.

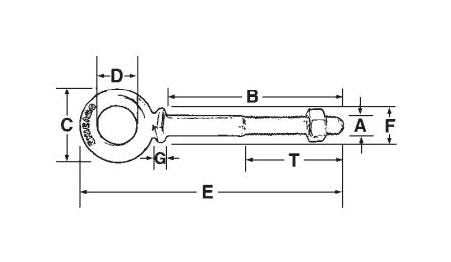

Product Specifications
Specifications Diameter A Shank Length B
5/8" x 6"
Specifications Inside Eye D
1-1/4"
Specifications Outside Eye C
2-5/16"
Specifications Outside Shoulder F
1-1/8"
Specifications Overall Length E
8-9/16"
Specifications Thickness At Shoulder G
13/64"
Specifications Thread Length T
3" "
Specifications Wll Lbs
3500
Specifications Wt Per 100 Pcs Lbs
103
CAGE
0T9L4
NAICS
332722
PSC
5306
