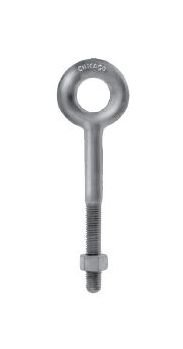

Chicago Hardware Drop Forged Machine Thread Eye Bolt - Galvanized Finish 3/8" x 2-1/2"

Name: Chicago Hardware Drop Forged Machine Thread Eye Bolt - Galvanized Finish 3/8" x 2-1/2"
Brand: Lexco Cable Manufacturing
SKU: WIR-e926ec
Price: 199.99 USD
Availability: OutOfStock

SKU:WIR-e926ec

Premium Drop Forged Machine Thread Eye Bolts - Built for Safety & Durability. Made in USA.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Chicago Hardware Drop Forged Machine Thread Eye Bolts are forged from heat-treated steel with a hot galvanized finish, meeting rigorous safety standards with a 5 to 1 safety factor. These eye bolts are designed for direct tension applications, with options for custom shank and thread lengths available. Ideal for cable assembly attachments, these machine threaded eye bolts are reliable and durable for various lifting operations.

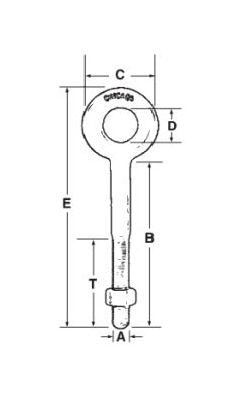

Product Specifications

Specifications Diameter A Shank Length B

3/8" x 2-1/2"

Specifications Inside Eye D

3/4"

Specifications Outside Eye C

1-1/2"

Specifications Overall Length E

Specifications Thread Length T

1-1/2" "

Specifications Wll Lbs

1200

Specifications Wt Per 100 Pcs Lbs

19.2

CAGE

0T9L4

NAICS

332722

PSC

5306
