Chicago Hardware Drop Forged Ring Bolt Shoulder - Machine Thread
Chicago Hardware Drop Forged Ring Bolt Shoulder - Machine Thread
SKU:WIR-3eea95
Chicago Hardware Drop Forged Ring Bolt with Galvanized Finish, 3/8" Diameter x 4-1/2" Shank Length, Made in the USA
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Ring Bolt Shoulder - Machine Thread
$139.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Ring Bolt Shoulder - Machine Thread
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

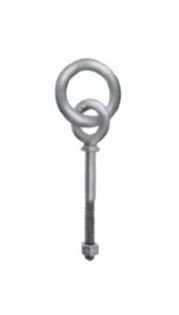

The Chicago Hardware Drop Forged Ring Bolt Shoulder is a reliable wire rope hardware solution made in the USA. Designed for secure attachment to cable assemblies, these bolts have a hot galvanized finish for durability. With a 3/8" diameter and 4-1/2" shank length, these bolts meet industry standards. Please note, these bolts are not intended for lifting applications.
Ready to Grow Without Cash Flow Constraints?

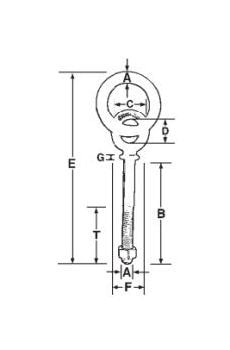

Product Specifications
Specifications Diameter A Shank Length B
3/8" x 4-1/2"
Specifications Id Eye Of Bolt D
3/4"
Specifications Id Eye Of Ring
2-1/2"
Specifications Od Eye Of Bolt C
1-1/2"
Specifications Outside Shoulder F
11/16"
Specifications Overall Length E
8-3/4"
Specifications Thickness At Shoulder G
1/8"
Specifications Thread Length T
2" "
Specifications Wll Lbs
600
Specifications Wt Per 100 Pcs Lbs
58
CAGE
0T9L4
NAICS
332722
PSC
5306
