Chicago Hardware Drop Forged Ring Bolts - Machine Thread
Chicago Hardware Drop Forged Ring Bolts - Machine Thread
SKU:WIR-a78328
Durable USA-made ring bolts for secure cable assembly attachment. Non-lifting applications with 400 lbs WLL.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Ring Bolts - Machine Thread
$99.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Ring Bolts - Machine Thread
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

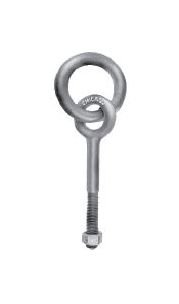

The Chicago Hardware Drop Forged Ring Bolts - Machine Thread are crafted for durability and reliability. Made in the USA, these hot galvanized steel bolts feature precise dimensions for secure attachment to cable assemblies. With a Working Load Limit (WLL) of 400 lbs, these ring bolts are designed for non-lifting applications. Trust in Chicago Hardware for quality wire rope hardware that meets industrial standards.

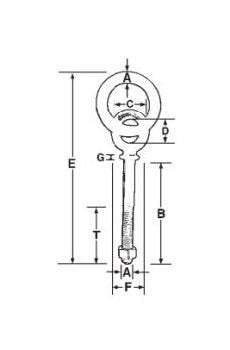

Product Specifications
Specifications Diameter A Shank Length B
5/16" x 2-1/4"
Specifications Id Eye Of Bolt D
5/8"
Specifications Id Eye Of Ring
2"
Specifications Od Eye Of Bolt C
1-1/4"
Specifications Overall Length E
5-1/2"
Specifications Thread Length T
1-1/2" "
Specifications Wll Lbs
400
Specifications Wt Per 100 Pcs Lbs
29
CAGE
0T9L4
NAICS
332722
PSC
5306
