Chicago Hardware Drop Forged Ring Bolts - Machine Thread

Chicago Hardware Drop Forged Ring Bolts - Machine Thread

SKU:WIR-e0f46a

Premium USA-made Drop Forged Ring Bolts for secure cable attachments. Ideal for various applications. Not for lifting use.

Regular price $249.99
Regular price Sale price $249.99
Sale

Initiate Order

Chicago Hardware Drop Forged Ring Bolts - Machine Thread

Chicago Hardware Drop Forged Ring Bolts - Machine Thread

$249.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware Drop Forged Ring Bolts - Machine Thread

Chicago Hardware Drop Forged Ring Bolts - Machine Thread

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

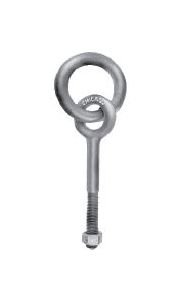

The Chicago Hardware Drop Forged Ring Bolts in regular machine thread design are precision-crafted in the USA for durability and reliability. Constructed from drop forged steel, these bolts feature a hot galvanized finish for enhanced corrosion resistance. With a Working Load Limit of 1750 lbs, these welded ring bolts are suitable for various cable assembly applications, offering a secure attachment via the ring or threaded end. Not intended for lifting applications, these ring bolts meet stringent quality standards for assured performance.

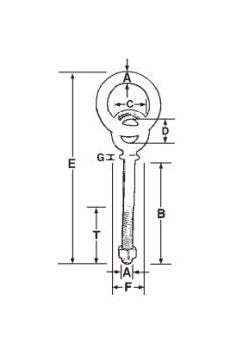

Product Specifications

Specifications Diameter A Shank Length B
5/8" x 10"
Specifications Id Eye Of Bolt D
1-1/4"
Specifications Id Eye Of Ring
2-3/4"
Specifications Od Eye Of Bolt C
2-5/16"
Specifications Overall Length E
15-1/16"
Specifications Thread Length T
4" "
Specifications Wll Lbs
1750
Specifications Wt Per 100 Pcs Lbs
231
CAGE
0T9L4
NAICS
332722
PSC
5306
