Chicago Hardware Drop Forged Ring Bolts Regular - Machine Thread
Chicago Hardware Drop Forged Ring Bolts Regular - Machine Thread
SKU:WIR-426add
Premium USA-made Drop Forged Ring Bolts - Ideal for Cable Assemblies, Not for Lifting
Regular price
$295.99
Regular price
Sale price
$295.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Ring Bolts Regular - Machine Thread
$295.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Ring Bolts Regular - Machine Thread
$295.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

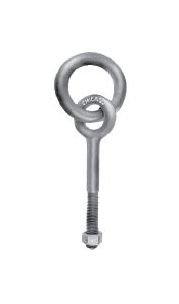

The Chicago Hardware Drop Forged Ring Bolts Regular with Machine Thread are a reliable choice for securing cable assemblies. Made in the USA by Chicago Hardware & Fixture Company, these ring bolts feature a sturdy construction with a hot galvanized finish for durability. Designed for non-lifting applications, these drop forged ring bolts offer precise specifications outlined in the table below. With a Working Load Limit (WLL) of 4900 lbs, these bolts ensure strength and performance.

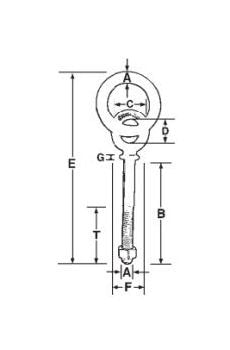

Product Specifications
Specifications Diameter A Shank Length B
1" x 6"
Specifications Id Eye Of Bolt D
2"
Specifications Id Eye Of Ring
3-3/4"
Specifications Od Eye Of Bolt C
3-3/4"
Specifications Overall Length E
13-1/2"
Specifications Thread Length T
3" "
Specifications Wll Lbs
4900
Specifications Wt Per 100 Pcs Lbs
645
CAGE
0T9L4
NAICS
332722
PSC
5306
