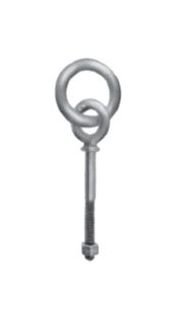

Chicago Hardware Drop Forged Ring Bolts - Shoulder - Machine Thread
Chicago Hardware Drop Forged Ring Bolts - Shoulder - Machine Thread
SKU:WIR-39f42e
Chicago Hardware Ring Bolts - Heavy-duty, USA-made, hot galvanized finish. Ideal for various fastening applications. WLL: 400 lbs per 100 pcs.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Ring Bolts - Shoulder - Machine Thread
$99.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Ring Bolts - Shoulder - Machine Thread
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware Drop Forged Ring Bolts boast exceptional strength and durability. Made in the USA, these bolts are hot galvanized for added protection. With precise dimensions, sturdy construction, and a working load limit of 400 lbs per 100 pieces, these bolts are suitable for various applications. Note: Not to be used for lifting. Attach to cable assemblies effortlessly for a secure fastening solution.

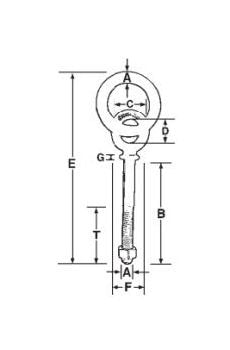

Product Specifications
Specifications Diameter A Shank Length B
5/16" x 2-1/4"
Specifications Id Eye Of Bolt D
5/8"
Specifications Id Eye Of Ring
2"
Specifications Od Eye Of Bolt C
1-1/4"
Specifications Outside Shoulder F
9/16"
Specifications Overall Length E
5-3/4"
Specifications Thickness At Shoulder G
3/32"
Specifications Thread Length T
1-1/2" "
Specifications Wll Lbs
400
Specifications Wt Per 100 Pcs Lbs
30
CAGE
0T9L4
NAICS
332722
PSC
5306
