Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread

Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread

SKU:WIR-9bc4d8

Chicago Hardware's premium Drop Forged Ring Bolt, ideal for secure cable assembly attachment with high WLL and adherence to industry standards.

Regular price $159.99
Regular price Sale price $159.99
Sale

Initiate Order

Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread

Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread

$159.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread

Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread

$159.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

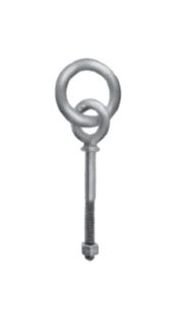

The Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread is a sturdy and reliable hardware solution made in the USA. Constructed from drop forged steel with a hot galvanized finish, these ring bolts are designed for secure attachment to cable assemblies. With a Working Load Limit (WLL) of 1100 lbs and compliant with strict industry standards, these bolts are ideal for a wide range of applications. Please note: Ring Bolts are welded and not intended for lifting applications.

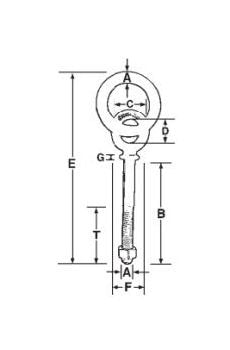

Product Specifications

Specifications Diameter A Shank Length B
1/2" x 3-1/4"
Specifications Id Eye Of Bolt D
1"
Specifications Id Eye Of Ring
3"
Specifications Od Eye Of Bolt C
2"
Specifications Outside Shoulder F
7/8"
Specifications Overall Length E
8-7/16"
Specifications Thickness At Shoulder G
5/32"
Specifications Thread Length T
1-1/2" "
Specifications Wll Lbs
1100
Specifications Wt Per 100 Pcs Lbs
115
CAGE
0T9L4
NAICS
332722
PSC
5306
