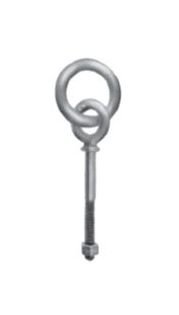

Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread
Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread
SKU:WIR-adb3a6
Premium Drop Forged Ring Bolts Shoulder for secure cable attachments, hot galvanized finish, non-lifting applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread
$189.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Ring Bolts Shoulder - Machine Thread
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware Drop Forged Ring Bolts Shoulder are expertly crafted in the USA, meeting the highest quality standards for wire rope hardware. These bolts feature a hot galvanized finish for durability and come with precise specifications ensuring reliable performance. Designed for non-lifting applications, these steel bolts offer exceptional strength and longevity, making them ideal for secure cable assemblies.

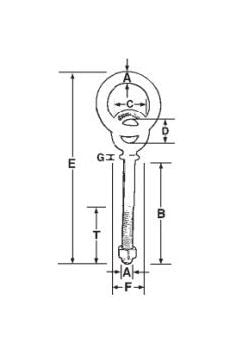

Product Specifications
Specifications Diameter A Shank Length B
3/4" x 6"
Specifications Id Eye Of Bolt D
1-1/2"
Specifications Id Eye Of Ring
3"
Specifications Od Eye Of Bolt C
3"
Specifications Outside Shoulder F
1-3/8"
Specifications Overall Length E
12-1/8"
Specifications Thickness At Shoulder G
1/4"
Specifications Thread Length T
3" "
Specifications Wll Lbs
2600
Specifications Wt Per 100 Pcs Lbs
310
CAGE
0T9L4
NAICS
332722
PSC
5306
