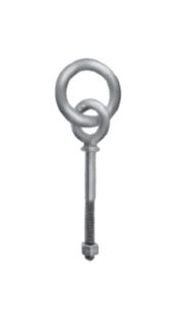

The Chicago Hardware Drop Forged Ring Bolts Shoulder are industrial-grade eye bolts crafted from drop forged steel with hot galvanized finish. Designed for safety applications, these American-made ring bolts boast a 2600 lbs Working Load Limit (WLL). The welded ring end and precise shoulder dimensions ensure secure fastening without compromising load-bearing capacity. Ideal for cable assemblies, these bolts offer reliability and durability for various heavy-duty applications.

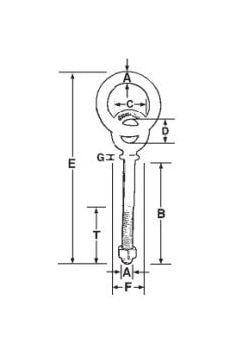

Product Specifications
Specifications Diameter A Shank Length B
3/4" x 4-1/2"
Specifications Id Eye Of Bolt D
1-1/2"
Specifications Id Eye Of Ring
3"
Specifications Od Eye Of Bolt C
3"
Specifications Outside Shoulder F
1-3/8"
Specifications Overall Length E
11"
Specifications Thickness At Shoulder G
1/4"
Specifications Thread Length T
2-1/2" "
Specifications Wll Lbs
2600
Specifications Wt Per 100 Pcs Lbs
288
CAGE
0T9L4
NAICS
332722
PSC
5306
