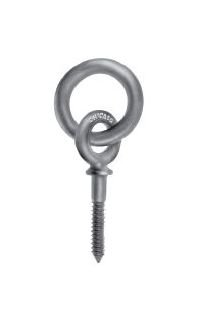

Chicago Hardware Drop Forged Ring Bolts Shoulder - Screw Thread
Chicago Hardware Drop Forged Ring Bolts Shoulder - Screw Thread
SKU:WIR-dadd63
Securely attach cables with Chicago Hardware Drop Forged Ring Bolts. Made in the USA, hot galvanized finish, drop forged steel.
Regular price
$2,499.00
Regular price
Sale price
$2,499.00
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Ring Bolts Shoulder - Screw Thread
$2,499.00
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Ring Bolts Shoulder - Screw Thread
$2,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware Drop Forged Ring Bolts Shoulder - Screw Thread is expertly crafted for secure cable assembly attachment. Made in the USA, these bolts feature a hot galvanized finish and drop forged steel construction. With precise specifications and a sturdy design, these bolts ensure reliable performance and durability. Note: Welded ring bolts are not for lifting applications.

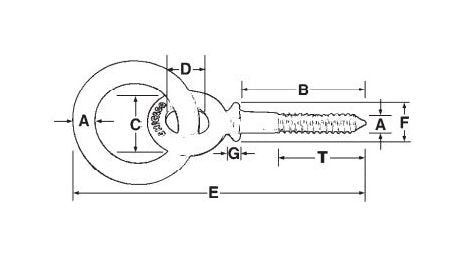

Product Specifications
Specifications Diameter A Shank Length B
1" x 6"
Specifications Id Eye Of Bolt D
2"
Specifications Id Eye Of Ring
3-3/4"
Specifications Od Eye Of Bolt C
3-3/4"
Specifications Outside Shoulder F
1-3/4"
Specifications Overall Length E
14-1/2"
Specifications Thickness At Shoulder G
5/16"
Specifications Thread Length T
3-1/2" "
Specifications Wt Per 100 Pcs Lbs
647
CAGE
0T9L4
NAICS
332722
PSC
5306
