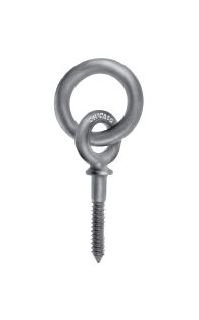

Chicago Hardware Drop Forged Ring Bolts - Shoulder & Screw Thread

Name: Chicago Hardware Drop Forged Ring Bolts - Shoulder & Screw Thread
Brand: Lexco Cable Manufacturing
SKU: WIR-5fbee0
Price: 349.99 USD
Availability: OutOfStock

SKU:WIR-5fbee0

Chicago Hardware Drop Forged Ring Bolts for reliable cable assembly attachment. Not for lifting use.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Meet project demands with these Chicago Hardware Drop Forged Ring Bolts Shoulder & Screw Thread. Made in the USA, these galvanized steel bolts offer durability and reliability. Ideal for cable assemblies, featuring precise dimensions and sturdy construction. Not recommended for lifting applications.

Product Specifications

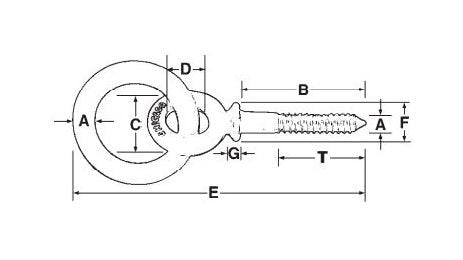

Specifications Diameter A Shank Length B

5/8" x 4-1/2"

Specifications Id Eye Of Bolt D

1-1/4"

Specifications Id Eye Of Ring

2-3/4"

Specifications Od Eye Of Bolt C

2-5/16"

Specifications Outside Shoulder F

1-1/8"

Specifications Overall Length E

10-1/4"

Specifications Thickness At Shoulder G

13/64"

Specifications Thread Length T

2-1/2" "

Specifications Wt Per 100 Pcs Lbs

170

CAGE

0T9L4

NAICS

332722

PSC

5306

Chicago Hardware Drop Forged Ring Bolts - Shoulder & Screw Thread
