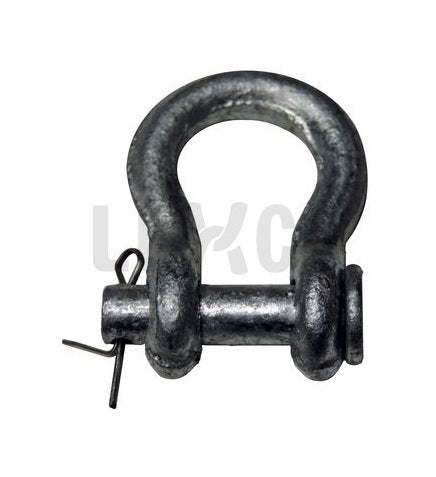

Chicago Hardware Drop Forged Round Pin Anchor Shackle
Chicago Hardware Drop Forged Round Pin Anchor Shackle
SKU:WIR-479eab
Durable Chicago Hardware Round Pin Anchor Shackle for reliable lifting and towing needs. Meets Federal Specs RR-C-271D.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Round Pin Anchor Shackle
$299.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Round Pin Anchor Shackle
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware Round Pin Self Colored Drop Forged Anchor Shackle is a versatile and durable option for wire rope loops in lifting or towing applications. Designed for both consumer and institutional use, this shackle is available in self-colored or hot galvanized finishes, with rust-preventative coatings available upon request. Safety shackles meet stringent specifications, marked with size, working load limit, and trademark for easy identification. Heat-treated for strength and reliability, these shackles are crafted for performance, meeting Federal Specifications RR-C-271D Type IVA. Ensure safety and compliance with this high-quality shackle from Chicago Hardware & Fixture Company.
Product Specifications
Specifications Length C
3-3/4"
Specifications Length Tolerance
1/4"
Specifications Od Eyes D
2-1/2"
Specifications Pin Or Bolt Diameter E
1-1/8"
Specifications Size Dia
1"
Specifications Width Bow B
2-3/4"
Specifications Width Eyes A
1-11/16"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
8-1/2
Specifications Wt Per 100 Pcs Lbs
537.5
CAGE
0T9L4
NAICS
332999
PSC
5340
