Chicago Hardware Drop Forged Round Pin Anchor Shackle

Chicago Hardware Drop Forged Round Pin Anchor Shackle

SKU:WIR-688adb

High-quality Chicago Hardware USA-made shackle with 12-ton working load limit, ideal for lifting and towing applications.

Regular price $159.99
Regular price Sale price $159.99
Sale

Initiate Order

Chicago Hardware Drop Forged Round Pin Anchor Shackle

Chicago Hardware Drop Forged Round Pin Anchor Shackle

$159.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware Drop Forged Round Pin Anchor Shackle

Chicago Hardware Drop Forged Round Pin Anchor Shackle

$159.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

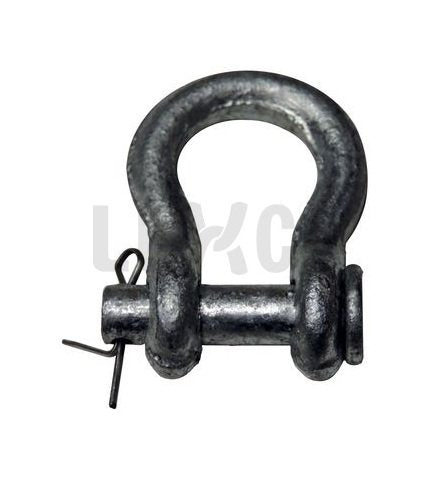

The Chicago Hardware Drop Forged Round Pin Anchor Shackle is a versatile and reliable wire rope hardware. Made in the USA, this self-colored shackle meets Federal Specifications RR-C-271D Type IVA, ensuring high performance and safety. Heat-treated for durability, it features a 12-ton working load limit with clear size markings. Suitable for lifting and towing applications, this shackle provides exceptional strength and reliability for institutional needs.

Product Specifications

Specifications Length C
4-1/2"
Specifications Length Tolerance
1/4"
Specifications Od Eyes D
3"
Specifications Pin Or Bolt Diameter E
1-3/8"
Specifications Size Dia
1-1/4"
Specifications Width Bow B
3-1/4"
Specifications Width Eyes A
2"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
12
Specifications Wt Per 100 Pcs Lbs
1007.5
CAGE
0T9L4
NAICS
332999
PSC
5340
