Chicago Hardware Drop Forged Round Pin Anchor Shackle
Chicago Hardware Drop Forged Round Pin Anchor Shackle
SKU:WIR-0107be
Chicago Hardware Drop Forged Round Pin Anchor Shackle - Self-colored finish, 9-1/2 tons WLL, heat-treated, RR-C-271D Type IVA compliant
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Round Pin Anchor Shackle
$259.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Round Pin Anchor Shackle
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

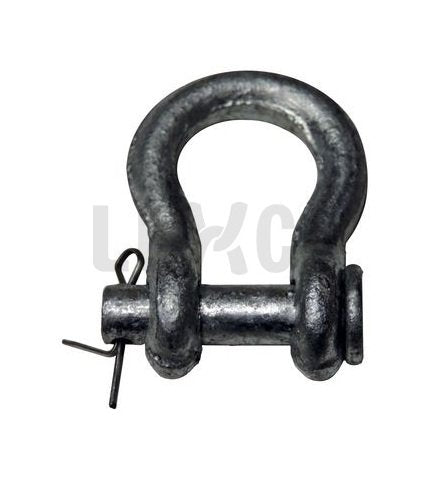

The Chicago Hardware Drop Forged Round Pin Anchor Shackle is a versatile and durable shackle suitable for a wide range of applications. Made in the USA by Chicago Hardware & Fixture Company, this shackle features a self-colored finish for enhanced corrosion resistance. With a working load limit of 9-1/2 tons, heat-treated shackles and pins, and safety factor compliance of 6 to 1, this shackle guarantees reliability and safety in lifting and towing operations. Meeting the performance requirements of Federal Specifications RR-C-271D Type IVA, this shackle is ideal for both consumer and institutional buyers looking for high-quality wire rope hardware.
Product Specifications
Specifications Length C
4-1/4"
Specifications Length Tolerance
1/4"
Specifications Od Eyes D
2-5/8"
Specifications Pin Or Bolt Diameter E
1-1/4"
Specifications Size Dia
1-1/8"
Specifications Width Bow B
2-15/16"
Specifications Width Eyes A
1-13/16"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
9-1/2
Specifications Wt Per 100 Pcs Lbs
765
CAGE
0T9L4
NAICS
332999
PSC
5340
