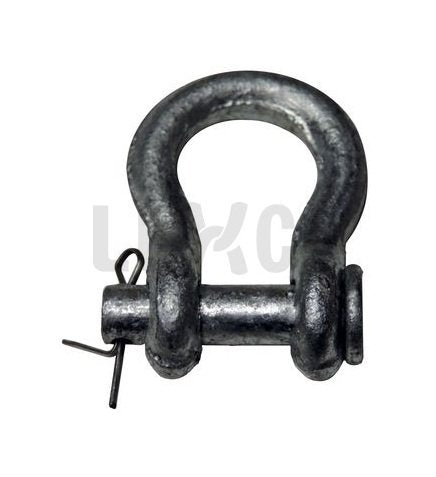

Chicago Hardware Drop Forged Round Pin Galvanized Anchor Shackle

Chicago Hardware Drop Forged Round Pin Galvanized Anchor Shackle

SKU:WIR-c212ec

Heavy-duty Chicago Hardware Drop Forged Round Pin Shackle with 1/2-ton WLL, heat-treated pins, and exceeds Federal Specifications RR-C-271D Type IVA.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

Chicago Hardware Drop Forged Round Pin Galvanized Anchor Shackle

Chicago Hardware Drop Forged Round Pin Galvanized Anchor Shackle

$59.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware Drop Forged Round Pin Galvanized Anchor Shackle

Chicago Hardware Drop Forged Round Pin Galvanized Anchor Shackle

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Hardware Drop Forged Round Pin Galvanized Anchor Shackle is meticulously crafted to meet the stringent safety and durability requirements essential for lifting and towing applications. This shackle boasts a 1/2-ton Working Load Limit, heat-treated pins, and meets the performance standards set by Federal Specifications RR-C-271D Type IVA. Ensuring reliability, this shackle is designed in compliance with industry standards for institutional procurement, making it an ideal choice for heavy-duty operations.

Product Specifications

Specifications Length C
1-1/8"
Specifications Length Tolerance
1/16"
Specifications Od Eyes D
3/4"
Specifications Pin Or Bolt Diameter E
5/16"
Specifications Size Dia
1/4"
Specifications Width Bow B
3/4"
Specifications Width Eyes A
15/32"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
1/2
Specifications Wt Per 100 Pcs Lbs
13.5
CAGE
0T9L4
NAICS
332999
PSC
5340
